Hitachi
Counterweight bar package 2
Article number: 110060-23
Specification
Lighting configuration
| Flashlight | 6 pcs |
|---|---|
| Position light, orange | 2 pcs |
| Position light, red | 6 pcs |
| Clamps | 2 pcs |
- Finish
- Painted
- Package level
- Package 2

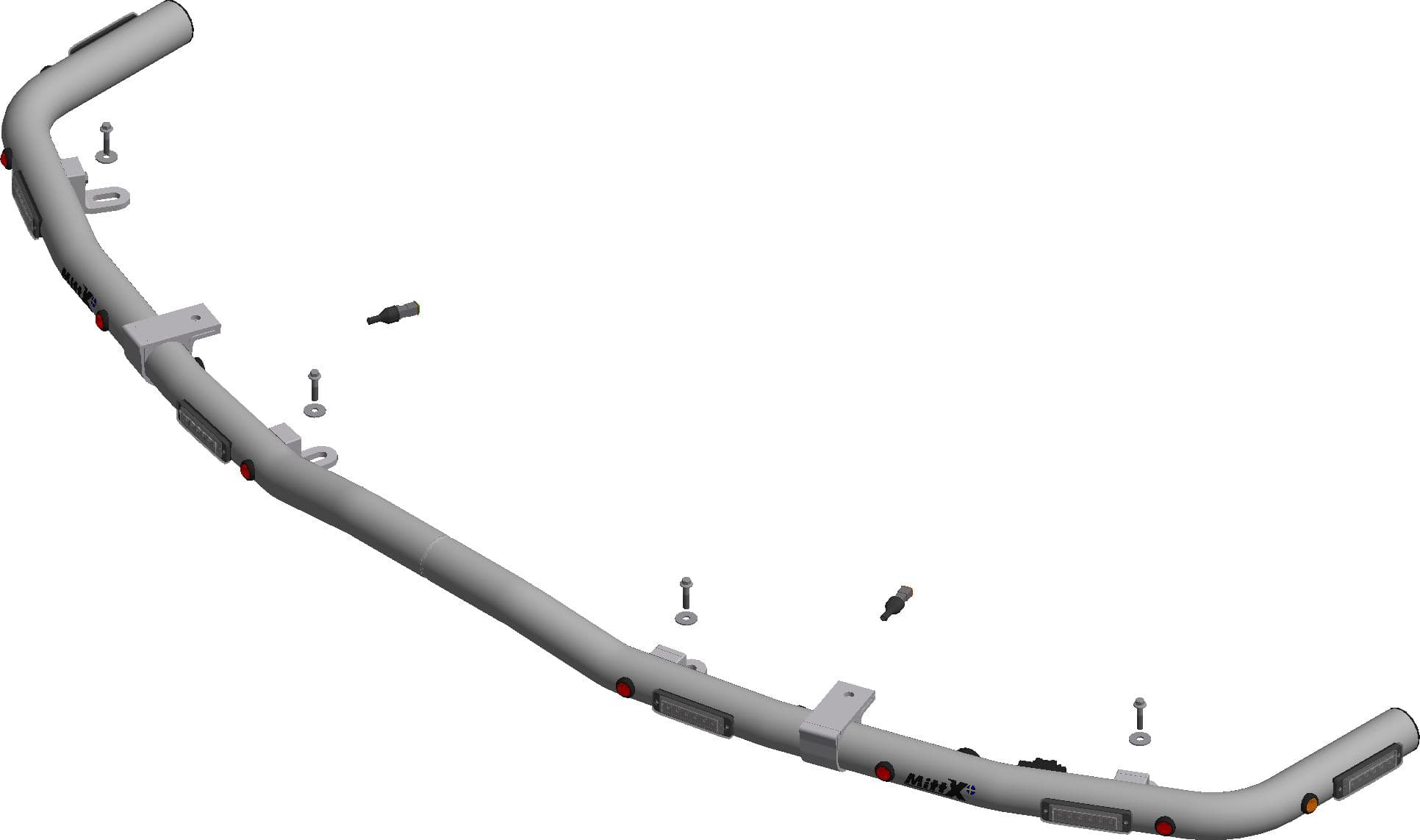

- Mounting
- Bar for mounting on the counterweight
Package levels are the factory's kit designations.
Machine fitment
Manufacturer fitment specification, quoted verbatim:
ZX175W-7
Model ranges are shown exactly as the manufacturer publishes them. Not sure about your machine? Ask us: checking fitment is free.
€3,048 excl. VAT · €3,688.08 incl. VAT (NL 21%)
Prices excl. VAT. B2B: reverse-charge VAT possible with a valid EU VAT number.
Ordering for a fleet, need an invoice first, or want to confirm fitment? Request a quote and we reply within one working day.
Powder coating in your colour
This bar can be powder coated in any RAL colour of your choice, matched to your machine or fleet. Powder coating is always quoted individually: request a quote and mention your preferred colour.
Request a quote with powder coatingMounting, wiring & use
Open printable manualMounting
Use packaging plastic when fitting clamp brackets to avoid damaging or scratching the bar's surface finish.
Wiring
- Wiring 1
- Connector DT06-08SA 1. Flashlight (+) 2. Flashlight (-) 3. Flashlight night dimming(+) 4. Position light(+) 5. Position light(-) 6. Work light (+) 7. Work light (-) 8. Not connected
Safety & use restrictions
- The factory products are intended solely as fixtures for lighting and warning systems.
- Under no circumstances may the product be used for towing or as a lifting device.
- The product is also not intended for use as a guard rail, handle or step.
Manufacturer specification
In accordance with VVFS 2003:27 (Swedish regulation), the product's position lighting must not be used while the vehicle is travelling in traffic on public roads. If the product is fitted to a class 1 motorised implement, it must be installed with a switch for the position lights.
Maintenance & cleaning
Maintenance & cleaning — Never spray concentrated jets directly at, or use high pressure (pressure washer) on, lamps and other electronic equipment. All our lamps are IP-rated to withstand water and moisture, but for a longer service life, care is recommended when cleaning. On products with a natural anodised surface, do not use alkaline or acidic cleaning agents; these damage the anodised surface. Only use cleaning agents with a pH between 6 and 8. Paint cleaner may be used on heavily soiled surfaces.
Flash patterns
a. Change the flash pattern by holding the button pressed for about 1 second. b. To reset the flashlights, hold the button pressed for about 5 seconds. The flashlights return to factory mode #0 (Random). NOTE: R65 is the EU-approved pattern and its use is recommended.
9 - Single (all) (R65 - EU Certified)
Show all programmable flash patterns
- 0 - Random (default)
- 1 - Single (split)
- 2 - Double (split)
- 3 - Quad (split)
- 4 - Quint (split)
- 5 - Mega (split)
- 6 - Ultra (split)
- 7 - Single-Quad (split)
- 8 - Single H/L (split)
- 9 - Single (all) (R65 - EU Certified)
- 10 - Single (all) (SAE)
- 11 - Double (all)
- 12 - Quad (all)
- 13 - Quint (all)
- 14 - Mega (all)
- 15 - Ultra (all)
- 16 - Single-Quad (all)
- 17 - Single H/L (all)
- 18 - Steady 2 (California)
- 19 - Steady 4 (all)
Source: factory product sheet PD00094 (rev. B), translated from Swedish. The original is archived. Translated from the supplier's Swedish documentation.
