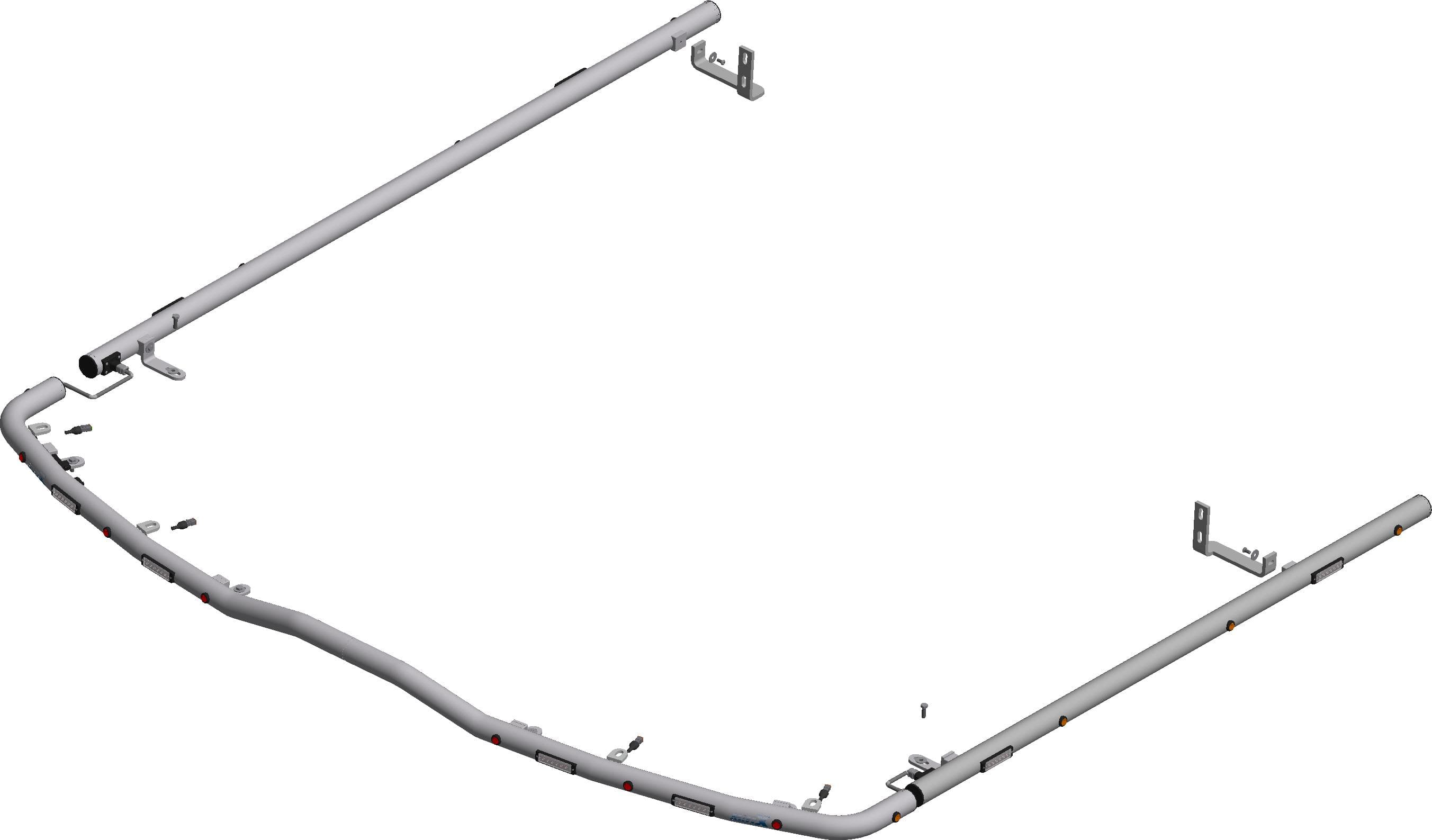

Top side bar package 2

Wiring

Wiring 1

Connector DT06-06SA 1. Flashlight (+) 2. Flashlight (-) 3. Position light (+) 4. Position light (-) 5. Work light (+) 6. Work light (-)

Safety & use restrictions

• The factory products are intended solely as fixtures for lighting and warning systems.
• Under no circumstances may the product be used for towing or as a lifting device.
• The product is also not intended for use as a guard rail, handle or step.

Maintenance & cleaning

Maintenance & cleaning — Never spray concentrated jets directly at, or use high pressure (pressure washer) on, lamps and other electronic equipment. All our lamps are IP-rated to withstand water and moisture, but for a longer service life, care is recommended when cleaning. On products with a natural anodised surface, do not use alkaline or acidic cleaning agents; these damage the anodised surface. Only use cleaning agents with a pH between 6 and 8. Paint cleaner may be used on heavily soiled surfaces. Before use, check that the lighting works and that there is no damage to the bar, wiring or mountings. Damaged or broken parts must be repaired or replaced. Damage to the rain guard (Plexiglas) can pose a certain risk of injury — sharp edges may occur, so exercise caution. When disposing of the product, aluminium must be sorted as recyclable and all electrical components as electronic waste. Any rain guard (Plexiglas) must be sorted as hard plastic.
